Video & Camera Capabilities
Video Encoding: Supports up to 1080p60 for main video streams and up to 4K (2160p15) for content sharing .
Cisco

Video Inputs: Accommodates 6 simultaneous video inputs:
3 × HDMI inputs supporting up to UHD (3840 × 2160) at 30 fps
2 × HDMI inputs supporting up to 1080p60
1 × 3G-SDI/HD-SDI input supporting up to 1080p60
Cisco
Video Outputs: Provides 3 HDMI outputs:
2 × HDMI outputs supporting up to 4Kp60
1 × HDMI output supporting up to 4Kp30

Camera Options:

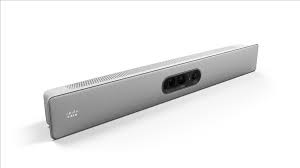

Cisco Quad Camera: Features four embedded digital cameras enabling best overview and speaker tracking capabilities, along with people count analytics .

Cisco Precision 60 Camera: Offers high-quality pan-tilt-zoom capabilities for presenter tracking.

Cisco SpeakerTrack 60: Dual-camera system providing direct, fast-switching speaker tracking .

Audio Features:
Microphone Support:

Connect up to 8 networked IP microphones via Power over Ethernet

Support for up to 8 analog microphones or 1 USB microphone .
Cisco

Audio Standards: Compatible with G.711, G.722, G.722.1, AAC-LD (mono and stereo), G.729AB, and Opus Stereo.
Cisco

Audio Processing:
High-quality 20 kHz audio
8 separate acoustic echo cancellers
8-port audio mixer
8 assignable equalizers .

Connectivity & Integration:
Network Interfaces: Includes multiple Ethernet ports for robust network connectivity.

USB Connectivity: Offers USB-C ports for passthrough to laptops and other devices.

Control Interfaces: Compatible with Cisco Room Navigator touch controller and scheduling display .

Platform Compatibility: Supports native Webex meetings and video interoperability with Microsoft Teams (VIMT, WebRTC), Zoom (SIP), and Google Meet (WebRTC) .
Cisco

Intelligent Features:
AI Capabilities:
Automatic speaker tracking
Group framing
People count analytics
Voice commands
Noise suppression .

Content Sharing: Supports both wired and wireless content sharing options.
Multi-Site Conferencing: Embedded MultiSite capability allows up to 5 participants .
Cisco

Physical Specifications:

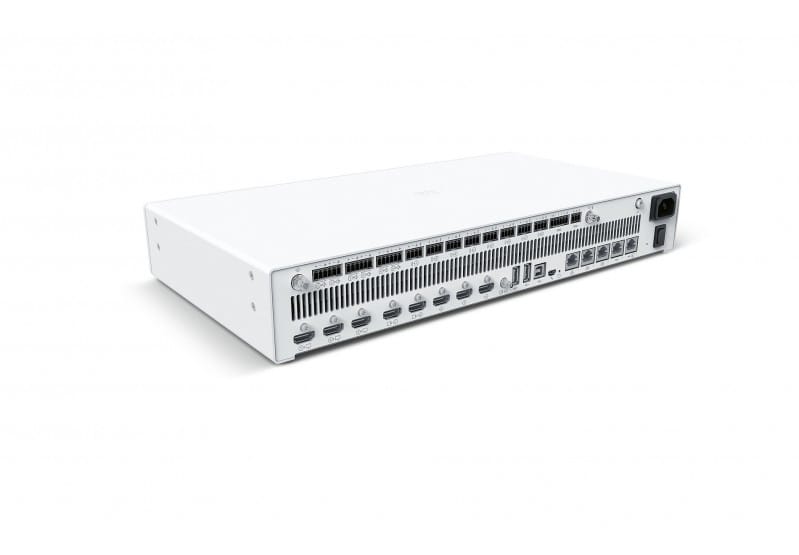

Codec Pro Dimensions:
Width: 17.1 in. (43.6 cm)
Height: 2.6 in. (6.6 cm)
Depth: 9.1 in. (23.1 cm)
Weight: 7.3 lb (3.3 kg) .

Quad Camera Dimensions:
Width: 37.4 in. (95.0 cm)
Height: 4.7 in. (12.0 cm)
Depth: 4.0 in. (10.3 cm)
Weight: 10.6 lb. (4.8 kg) .
